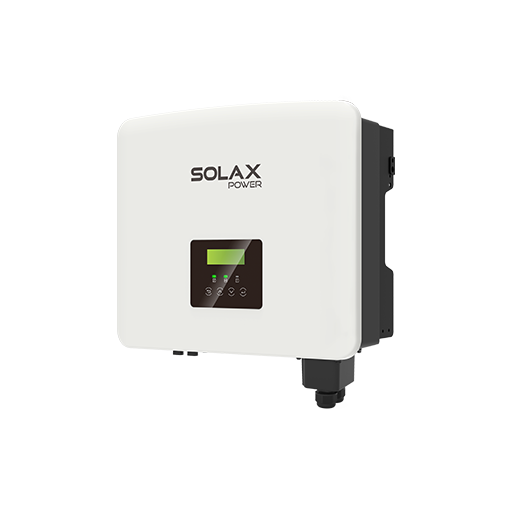

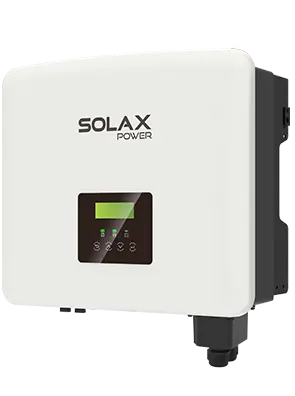

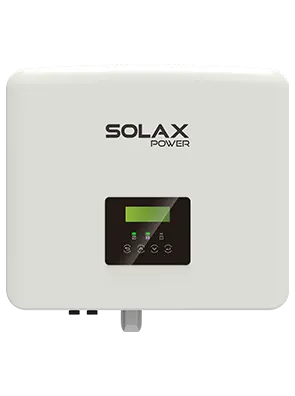

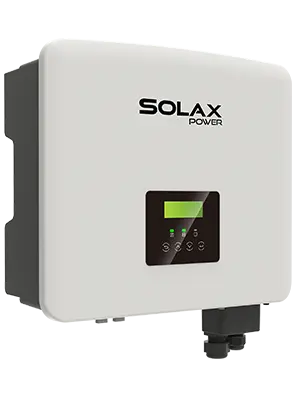

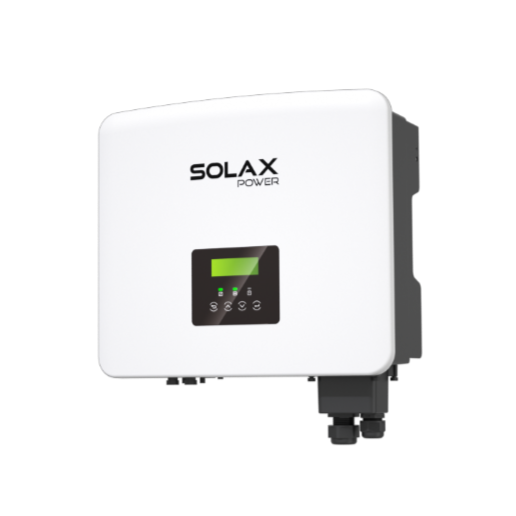

储能逆变器
X1-Hybrid G4
-
3.0千瓦/3.7千瓦/5.0千瓦/6.0千瓦/7.5千瓦
X1-Hybrid G4与T30电池、Matebox协同组合，构成一体的X-ESS G4家庭储能解决方案。该储能逆变器可无缝接入热泵与智能电动汽车充电桩，为现代家居提供稳定可靠的智慧能源管理体验。
产品优势
X1-Hybrid G4 支持200%光伏超配设计，可实现最优发电效率，充放电效率高达97%。同时，该储能逆变器具备虚拟电厂（VPP）功能，能够参与电力市场辅助服务，为并网及离网储能系统提供灵活高效的能源解决方案。
稳定可靠
EPS输出功率最高达150%（可持续10秒）
UPS级切换时间＜10毫秒
IP65防护等级
- 交直流侧均配备II级浪涌保护装置
高性能表现
支持200%光伏超配及最高110%交流输出
光伏输入最高达200%
充放电效率高达97%
低启动电压，延长系统运行时间
灵活适配
兼容锂离子电池与铅酸电池
最高16A直流输入电流，适配大功率光伏组件
支持并离网并联运行，最大支持15kW系统
智能管理
具备虚拟电厂（VPP）就绪能力，支持电力市场辅助服务
全局MPP扫描，实现最优发电效率
智能负载管理（适配热泵、智能电动汽车充电桩等设备）
基于分时电价的智能能源管理
产品参数
-
X1-HYBRID-3.0-D-
PV INPUT
Max. recommended PV array power 6.0 kWp MPPT voltage range 70~550 V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 3000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power 3000 VA Peak EPS output power 6000 VA, 10 s Switchover time <10ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 482 x 417 x181 mm Net Weight 24 kg
-
-
X1-HYBRID-3.7-D
-
PV INPUT
Max. recommended PV array power 7.4 kWp MPPT voltage range 70~550 V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 3680 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power 3680 VA Peak EPS output power 6000 VA, 10 s Switchover time <10 -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 482 x 417 x181 mm Net Weight 25 kg
-
-
X1-HYBRID-5.0-D
-
PV INPUT
Max. recommended PV array power 10.0 kWp MPPT voltage range 70~550 V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 5000 W
(Gemmany 4600 W, AU 4999 W)
Rated AC voltage 1/N/PE, 220/230/240 V -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power 5000 VA Peak EPS output power 7500 VA, 10 s Switchover time <10> -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 482 x 417 x181 mm Net Weight 24 kg
-
-
X1-HYBRID-6.0-D
-
PV INPUT
Max. recommended PV array power 12.0 kWp MPPT voltage range 70~550 V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 6000 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power 6000 VA Peak EPS output power 9000 VA, 10 s Switchover time <10> -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 482 x 417 x181 mm Net Weight 24 kg
-
-
X1-HYBRID-7.5-D
-
PV INPUT
Max. recommended PV array power 15.0 kWp MPPT voltage range 70~550 V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 16 A/16 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 7500 W Rated AC voltage 1/N/PE, 220/230/240 V -
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power 7500 VA Peak EPS output power 11250 VA, 10 s Switchover time <10> -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 482 x 417 x181 mm Net Weight 25 kg
-
